上海奔欣紙箱機械有限公司

聯 系人：曹建林先生
聯系電話：86 - 021 - 57540641
手機：15800528058
電子信箱：alin424@163.com
所在地：上海奉賢區
公司地址：上海市奉賢區四團鎮彭平公路612號

產品型號：
產品規格：

原產 地：

適用范圍：

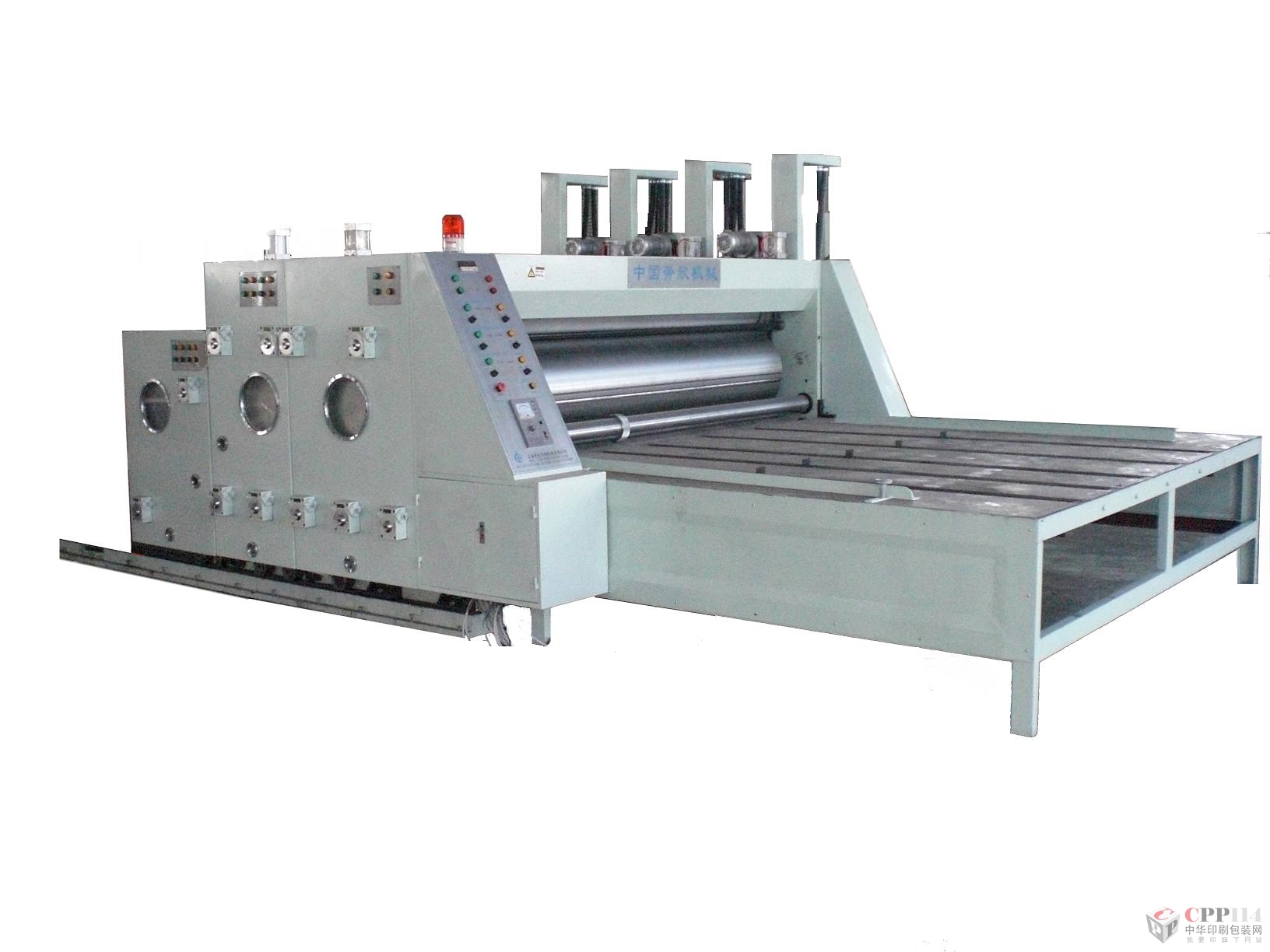

詳細描述：BYK半自動水性印刷開槽模切機

BYK Semi-automatic Flexo Printing Slotting Die-cutting Machine

特點：

v        采用鏈條式送紙

v        可一次性完成水性印刷、分切，壓痕，開槽切角工序

v        相位電動調整，自動歸零，自動復位

v        各連接部自動鎖定，電動分合

v        套色準確，印刷圖案精美，操作方便

v        可提供打孔裝置（可選配）

Features:

v        Feeding by chains.

v        Able to print, slit, crease and flap cut in one pass.

v        Motorize adjustment of phase, automatic zero setting, and automatic reset.

v        Automatic pneumatic locking for each unit, and motorize opening.

v        Accurate print register, producing high quality printing. Easy operation.

v        Hole making equipment can be provided, handholds etc.

送紙部：

v        鏈條送紙。

v        送紙輪間隙通過渦輪箱手動調整，調整范圍0-11mm。

v        機組移動伴隨警鈴提示，保證工作人員安全。

v        自動計數

v        主面板上裝有急�？刂瓢粹o。

Feeding Unit

v        Chain feeder.

v        The clearance of feeding roller is regulated by hand and the scope is 0-11mm.

v        Each unit separation and incorporation is motorized. When the machine is separating or incorporating, an alarm bells to make operators safety.

v        Automatic counter for controlling output.

v        Emergency switch on the main controlling panel.

v        印刷輥：采用優質鋼材，表面經研磨，鍍硬鉻。

v        快速換版裝置，可360度調整。

v        設有腳踏開關（可正反轉），方便裝卸印版。

v        送紙輪，壓印輥間隙手動調整，刻度盤顯示。

v        橡膠輥：選用優質鋼材，表面覆蓋進口優質耐磨橡膠。

v        印刷部相位電動行星輪調整，刻度盤顯示調整量。

v        印刷輥橫向手動調整距離20mm。

Printing Unit

v        Printing roller: The roller is made of thick steel board and its surface is plated hard chromium after it is grinded.

v        Quick hanging forme device. And 360 degree adjustment.

v        A switch regulated by feet makes the roller turn clockwise and anticlockwise. So it is convenient to load and unload the forme.

v        Adjusting clearances of feeding wheels and impressing roller manually and dial displays.

v        Rubber roller: Adopting high quality steel pipe and is covered by imported anti-abrasion rubber.

v        Regulating printing phase position is motorized by planetary gear system and dial displays.

v        Manual transversal adjustment of the printing roller covers 20mm.

Ⅰ型開槽部（電動開槽部）：

v        開槽相位360度，電動行星輪調整。

v        開槽后刀360度，電動行星輪調整。

v        電動聯動調整紙箱開槽間距和壓痕間距。

v        選用優質7mm厚開槽刀，鋸齒形刀刃，保證使用壽命和開槽質量。

v        可選配打孔，打扣手裝置。

Slotting Unit of modelⅠ(Motorized)

v        Regulate slotting phase in 360 degress with planetary gear system.

v        Regulate back slotter in 360 degress with planetary gear system.

v        Adjust the clearances of slotting and creasing in line by motor.

v        Thickness of the alloy steel slotter is 7mm.And the hackle blade can prolong its using life and keep perfect slotting effect.

v        Optional equipment—the punching device.

Ⅱ型開槽部（手動開槽部）：

v        開槽相位360度，電動行星輪調整。

v        箱寬、箱長（軸向移動）手動調整。

v        選用優質7mm厚開槽刀，鋸齒形刀刃，保證使用壽命和開槽質量。

v        可選配打孔，打扣手裝置。

Slotting Unit of modelⅡ(Manual)

v        Regulate slotting phase in 360 degress with planetary gear system.

v        The The height of the carton and creasing clearance can be adjusted together manually.

v        Thickness of the alloy steel slotter is 7mm. And the hackle blade can prolong its using life and keep perfect slotting effect.

v        Optional equipment—the punching device.

技術參數specifications：

BYK參數Data
型號Model
1000*1800
1000*2500
1200*2500
1400*2800
1600*2800

最高運行速度 Max.speed (p/min)
80
80
80
60
60

最大紙板尺寸Max.size of board (mm)
1000*1800
1000*2500
1200*2500
1400*2800
1600*2800

最小紙板尺寸Min.size of board (mm)
260*400
260*400
300*420
330*450
380*450

最大印刷面積 Max.printing size (mm)
1000*1800
1000*2500
1200*2500
1400*2800
1600*2800

標準印版厚度 Thickness of printing plate (mm)
6
6
6
6
6

Ⅰ型最小開槽間距 BYKⅠ Min. Slotting size (mm)
180*180*180*180
180*180*180*180
180*180*180*180
180*180*180*180
180*180*180*180

Ⅱ型最小開槽間距 BYKⅡ Min. Slotting size (mm)
110*110*110*100
110*110*110*100
110*110*110*100
110*110*110*100
110*110*110*100

售后服務：
